The IP69K IR camera provides clear picture quality even in the dark at night
Real HDR is installed to remove light blurring when driving at night,
and it shows clear recording quality in various lighting conditions such as backlight and tunnels.
Time Lapse mode records one frame per second, minimizing the size of the video for a long time to record parking.
*HEVC(High Efficiency Video Coding)
H.265 compression rate is up to 2 times higher than H.264.
It means that users can use 256GB SD card as 512GB SD card.
60FPS shows smoother images by showing 6 still images per 0.1 second
than 30FPS which used to display 3 still images per 0.1 second

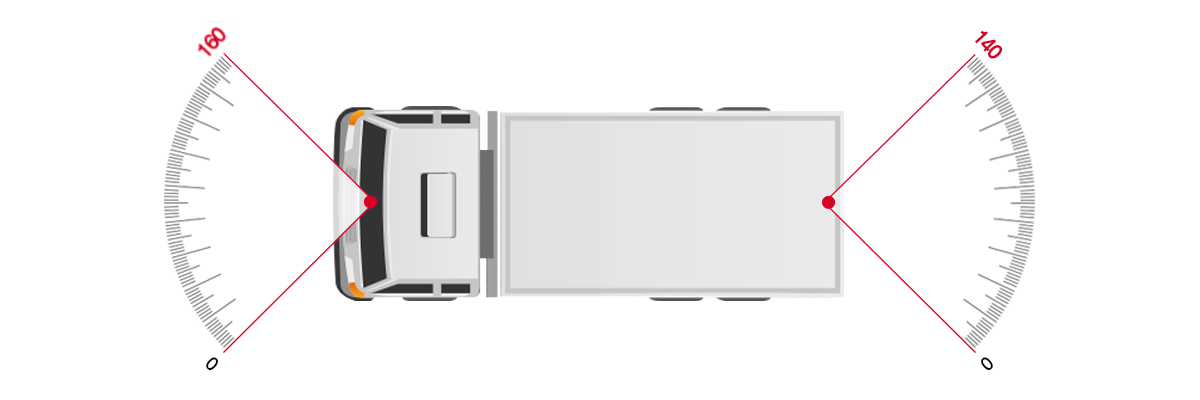

Front camera: Left / Right distortion-free viewing angle 160 degrees. Rear camera 140 degrees
The excessive angle of view refracts the image, causing side effects such as distortion and loss of distance.
The G-ON-T system has an optimal shooting angle of 160 degrees and rear camera With a 140-degree angle of view which allow
the back of the truck to be recorded more reliably, and images without distortion of left / right / up / down are provided.
After accessing the firmware configuration by APP, the latest
firmware can be automatically searched for and downloaded.
You can easily set up device registration, real-time video setup, recorded
video list, and customer support through the mail screen.
Using the Smartphone APP, you can upgrade the firmware
and play video as well as configure various settings
*You can only connect your smartphone with WiFi dongle connected to the black box (WiFi dongle sold separately)
*Disable IOT/WiFi feature when CLOUD is enabled
For vehicle battery discharge protection
It is an intelligent Safe Guard function that automatically shuts down recording when the voltage falls below
a specified voltage and cuts off the power to protect the battery of the vehicle.
GNET G-ON LBP FUNCTION AUTO SAFE GUARD ( LBP ON / OFF )
Settings can be made directly from the dedicated GNET PC VIEWER, and the vehicle voltage can be checked when checking
the recorded video of the vehicle. You can easily set up wirelessly via GNET APP at the time of smartphone interlocking
|Division||Configurable Voltage (V)|
PC exclusive viewer program
“G-Syncloud” for fleet management system by our own technology.
Unlimited storage capacity beyond the limitation of dash camera storage.
monitor driver behaviour and check road conditions in real-time. 24 hours, 7days in our dash camera is available upon request
Live GPS tracking
Always know where your vehicles are, monitor traffic and track the drivers’ route no calling around to drivers.
Driving Analysis Report
It enables you to view your driver details in one sheet. It can improve vehicle safety and driver safety by knowing how your drivers are driving.
A Geo-Fence creates a virtual barrier around the vehicle and triggers an alarm, alerting the server, if anyone tries to access the vehicle without authorization.
3 functions for safe driving
ADAS is a safe driving assistance system for the driver’s safe driving environment
FVSA – Front Vehicle Start Alarm
When the distance to the vehicle in front of your
car stops by more than 2 meters, the departure
icon of the vehicle in front of you with beep sound
appears on the LCD screen.
FCWS – Forward Collision Warning System
When the distance between the vehicle in
front is short and the vehicle speed is high and
in front is rapidly reduced within a short time.
Displays a Collision Warning icon with a notification
LDWS – Lane Departure Warning System
If you leave the lane while driving, It is indicated
by a yellow or red line with a warning sound.
only, notification works only when the speed
is over the set speed.
* Lane detection points, forward departures, and collision warning icons are only visible if the current status of the LCD is live.
ADAS settings can be set only after GPS connection
Convenient and diverse functions
|MEMORY CARD AUTOMATIC|
RECOVERY AND SELF-FORMAT
|BUILT-IN VOICE GUIDE|
|G-Net has been passed the high-temperature test.|
Differs from other brand dash cameras
which shut down the power becasue they can
not withstand at high temperatures.
|Unlike other companies’ black boxes, which|
require users to format periodically, JDR’s
own file system with excellent reliability is
applied for convenient use without regular format.
|It has a friendly voice guide, high-quality|
voice recording, and a high-performance
microphone, which makes it easier to check the
operation and recording conditions while driving.
|SECURITY LED FUNCTION||EXTERNAL GPS||VARIOUS RECORDING MODES|
|It is equipped with intelligent security|
LED function to prevent crimes that can parking
terrorism and theft. With clear view, it detects
movement in parking mode and starts
|You can check at a glance the data image|
received from the GPS while driving.
* External GPS is optional (sold separately)
|Parking Surveillance / Motion Detection|
The event recording is automatically recorded
for a certain period of time when the impact is
detected on the vehicle in various
PC exclusive viewer program
Easily play and check the recorded video with a viewer program for PC
It provides various functions Zoom, partial zoom function, Lane drawing function, set recording frame.
Backup features include AVI file generation, tampering prevention, thumbnails, and interval repetitive searches.
