Brand: GNET
Notes: In-store only
The STARVIS is back-illuminated pixel technology used in CMOS image sensors for surveillance camera applications.
It features a sensitvity of 2000 mV or more per1 um2(color product, when imaging with a 706cd/m2 light source,
F5.6 in 1 s accumulation equivalent), and realize high picture quality in the visible-light and near infrared light regions.
ADAS is a safe driving assistance system for the driver's safe driving environment
The vehicle in front of you is pulling away more than 2 meters, the dash cam let the driver know with the beep sound also the departure icon on the LCD screen.
*Non-LCD product provides sound warning only
If the distance of the vehicle in front of you is reducing rapidly in short time with high speed, the dash cam let driver know with the beep sound and display collision warning icon on the LCD screen.
*Non-LCD product provides sound warning only
If you leave the lane while driving, the dash cam let the driver know with beep sound and it shows yellow or red lines for notification on the LCD screen.
*Non-LCD product provides sound warning only
* Warning icons for lane detection, forward departure and collision are only visible if the LCD is on. ADAS settings are available when the GPS is connected.
Time-lapse function automatically applied when entering parking mode
Time Lapse mode records one frame per second, minimizing the size of the video for a long time to record parking.
*HEVC(High Efficiency Video Coding)
Real HDR is installed to remove light blurring when driving at night,
and it shows clear recording quality in various lighting conditions such as backlight and tunnels.
H.265 compression rate is up to 2 times higher than H.264.
It means that users can use 256GB SD card as 512GB SD card.
Front camera: 140° / Rear camera: 140°
Option - Interior IR camera(driver, passenger): 180°, Exterior IR, IP69K: 140°
Excessive angle of view refracts the image, causing effects such as distortion and loss of distance. The GNET System has an optimal camera angle of 140° view without those problems, the situation of accidents on the side angle is recorded more reliably, and images without distortion of left / right / up / down are provided.
User convenience has been further upgraded
using intuitive icons for anyone to operate conveniently

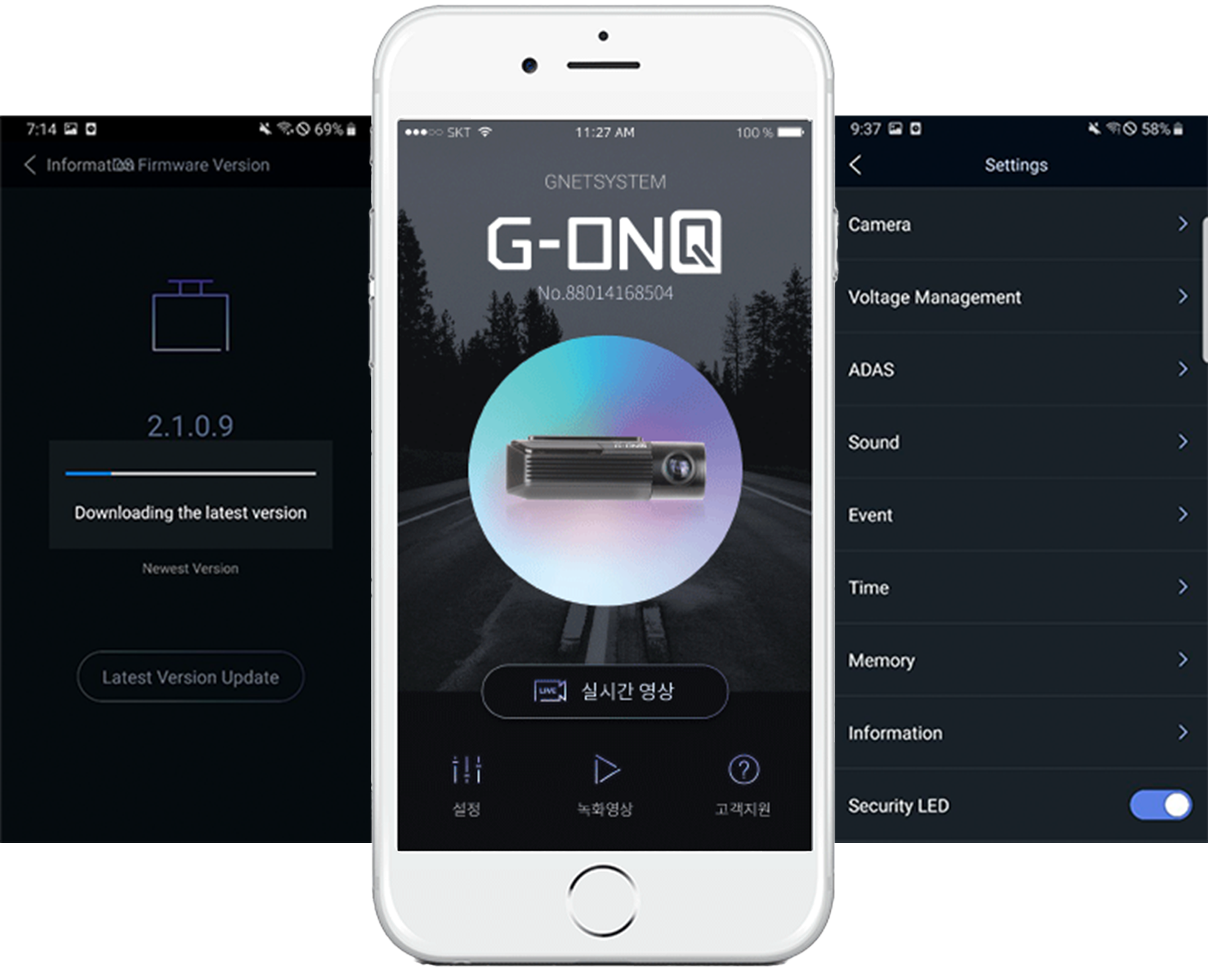

After accessing the firmware configuration by APP, the latest firmware can be automatically searched for and downloaded.
You can easily set up device registration, real-time video setup, recorded video list, and customer support through the mail screen.
Using the Smartphone APP, you can upgrade the firmware and play video as well as configure various settings.
*You can only connect your smartphone with WiFi® dongle connected to the dash cam(WiFi® dongle is sold separately)
*Disable IOT/WiFi feature when CLOUD is enabled
It is an intelligent Safe Guard function that automatically shuts down recording when the voltage falls below a specified voltage and cuts off the power to protect the battery of the vehicle.
Settings can be made directly from the dedicated GNET PC VIEWER, and the vehicle voltage can be checked when checking the recorded video of the vehicle. You can easily set up wirelessly via GNET APP at the time of smartphone interlocking
Division | Configurable Voltage (V) | ||||
---|---|---|---|---|---|
Power Off | 11.3 | 11.5 | 11.8 | 12 | 12.3 |
G-Net has been passed the high-temperature test.Differs from other brand dash cameras which shut down the power because they can not withstand high temperatures.
Unlike other companies' black boxes, which require users to format periodically, JDR's own file system with excellent reliability is applied for convenient use without regular format.
It has a friendly voice guide, high-quality voice recording, and a high-performance microphone, which makes it easier to check the operation and recording conditions while driving.
It is equipped with intelligent security LED function to prevent crimes that can parking terrorism and theft. With clear view, it detects movement in parking mode and starts recording automatically.
You can check at a glance the data image received from the GPS while driving.
* External GPS is optional
(sold separately)
Parking Surveillance / Motion Detection The event recording is automatically recorded for a certain period of time when the impact is detected on the vehicle in various recording modes.
It provides various functions Zoom, partial zoom function, Lane drawing function, set recording frame. Backup features include AVI file generation, tampering prevention, thumbnails, and interval repetitive searches.
※The image of components may be different from the real components.)
※Specifications and Components may be changed without notice for improving quality.
※We are highly recommend to use a Genuine Memory card from Gnetsystem.
Features | Specification |
---|---|
Image Sensor | SONY Starvis (HDR) |
Audio input | Built-in Microphone |
Video Compression | H.265 |
Audio Compression | ADPCM |
Resolution | Front : QHD (2560 X 1440) / Rear : QHD (2560 X 1440) |
FPS | All cameras : Max. 30 FPS |
3G/4G/Router (Optional) | Connect to withCLOUD™ via 3G/ 4G/ Router telecommunication |
Wi-Fi (Optional) | Connect to GNET Smart phone application via Wi-fi® dongle |
G-Sensor | Event recording by External Shock |
Speaker | Operation Status alarm / Voice guidance |
External GPS | Synched with Google map, Keep track of location and Speed |
Angle Of View | Front : 140˚, Rear : 140˚, Option - Interior : 180˚, Exterior : 140˚ |
Viewer | Windows XP/7/8/10, Support 32Bit / 64Bit, Synchronizing Google map with PC viewer is supported over Windows7 and explorer 10 as per Google' s policy. |
Power | DC 12V - 24V |
Acceptable current value of the supplied fuse | 3A |
Operation Temperature | -10℃ ~ 70℃ |
Humidity | 10~95% |
Dimension (WxHxD, mm) | Front : 116x56x32, Rear (Including the bracket) : 44x38x28 |
