DESCRIPTION

Ride share & Fleet Real-time Image/Video Transfer & GPS Tracking

CSI Car systems installation is Authorized seller and installer for SmartWintess cameras

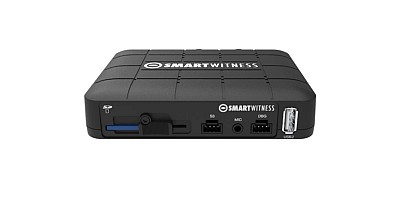

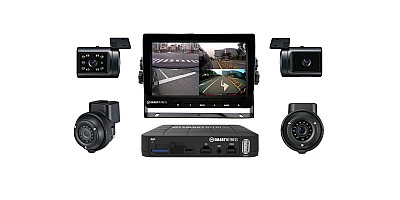

CP4 - 4 Channel HD Vehicle Recorder

With Integrated GPS, 6-Axis G-Sensor, and 3G/4G/LTE

The CP4 is a powerful, compact and discreet 4 camera recorder for recording up to 4 cameras with audio. The CP4 will record exactly what happened before, during and after an incident. It does this by recording the following information: Drivers view of the road, Vehicle Location, Impact Force of Accident, Audio, & Driving Style (speed, acceleration, braking, & steering) .

This evidence can protect a driver from many of the issues faced on the roads today: Insurance fraud, Staged Accidents, False/Exaggerated Whiplash Claims, Conflicting Reports of Actual Events, Driving Offense Allegations (speeding, traffic signal violations, swerving, etc).

CP4 is small, lightweight, easy to use, and simple to install compared to other complex and expensive mobile DVRs. CP4 can be easily installed inside a glove box or purchased with a locking case to prevent unauthorized access to the recorded data. An LCD monitor is not required for use, but can be added to provide added visibility in and around the vehicle for added security and safer operation..

CP4 Overview

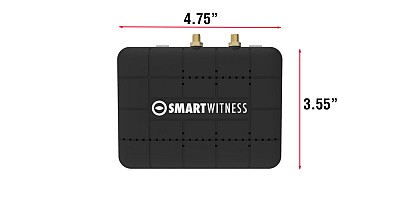

The SmartWitness CP4 is the world’s smallest 4 channel vehicle data recorder. CP4 is an LTE enabled device which offers commercial vehicle owners an effective risk reducing means to aid in the investigation process, decrease collateral damages associated with car accidents, encourage safe driving, monitor driving behaviors, and enhance the overall safety on the road.

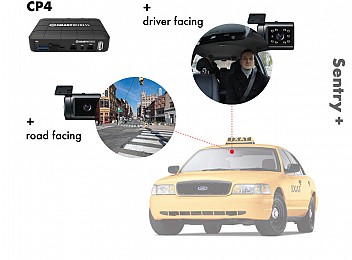

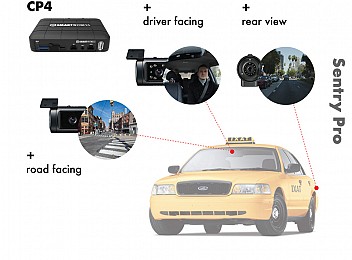

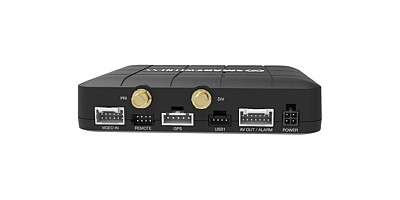

CP4 features 4 camera inputs for connecting 1, 2, 3, or 4 cameras. A 6-Axis G-Sensor, Microphone, SD card (up to 128GB capacity), panic button, embedded LTE modem, & GPS. CP4 is powered up on vehicle ignition and automatically begins recording. Various camera options are available, making the amount of possible CP4 system combinations nearly endless. CP4 is the successor to the popular SmartWitness SVC400, which exceeded 50,000 commercial vehicle installations worldwide including school buses, taxis, semi-trucks, tow trucks, fork-lifts, ambulances, garbage trucks, van fleets, and more. An LCD display can be connected to CP4, making it double as a rearview backup system and blind-spot aid.

What's in the box

CP4 recorder
Power cable harness with alarm trigger wires
GPS receiver
Remote Control/Panic Button
3M foam adhesive, adhesive velcro, & adhesive cable clips
Mic & G-Shock Sensor (built-in to CP4 recorder)
Omni-Directional wired microphone extension with 9' cable
Video output cable for connecting LCD monitor
Quick Start Guide

Optional Accessories

CP4 Cameras: 12V plug & play cameras for direct connection to CP4 channels 1-4. Various Camera options available
CP4-LC: Steel locking cover for preventing unauthorized access to SD card. Also for hard mounting the recorder
SVC7QLCD: Heavy Duty High Resolution 7" LCD Monitor with Multi Camera Display. Designed for mounting on dashboard or roof lining
CP4-LC: Locking SD cover bracket (replaces the standard cover with torx screw)
CP4-OBD : (ETA Q2 2018) OBD Interface Cable and interpreter module for receiving information from vehicle: Speed, RPM, Engine Loading, Battery Voltage, Engine Temperature, Throttle Position Status(Emergency Braking, Brake, Clutch, Cruise Control), MAF, Distance, and FU ( Average Fuel Economy)
SVA4812: DC to DC Power Converter - (Input voltage: 14v-48v. Power output: 12v +/- 0.5v)

Recording

720P recording on all CH 1-3, D1 on CH 4.
128GB SD storage capacity, record up to 150 hours of footage on 4 camera setup
Various camera options: wide angle, weatherproof, infrared, dome, side view, rugged, reverse cameras, etc.
Dual Record mode (Continuous + Event)
Optional Audio Recording
Connects directly to vehicle ignition power, automated operation.
Tamper-Resistant locking case available; Key required to access SD card Data
GPS data records full time to provide location data, vehicle speed, and accurate time/date
Adjustable Resolution & Frame Rate
Built-in G-Shock Sensor and Gyro (adjustable sensitivity)
Three 12V alarm input triggers for advanced event recording. Two 5V alarm outputs for 3rd party systems integration.
Wired remote control & Emergency/Panic button for driver activated event recording
Auto SD card format feature. CP4 automatically detects SD error/corruption and auto-formats itself and begins recording again.
Delay power shutdown feature enables recording for up to 24 hours after ignition off
Built-in temperature logic for improved performance in high-temp environments
REST API available for system integration

Playback & Analysis

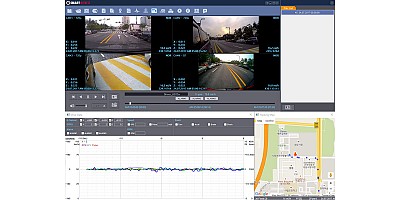

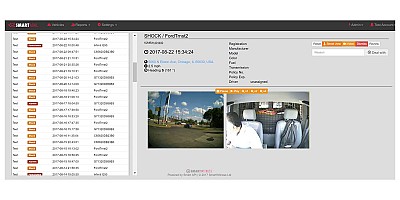

PC Analysis Software Included

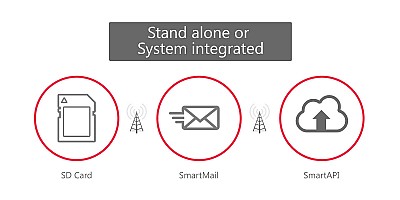

Compatible with SmartWitness Smart API for AVL/Telematics Integration
Filter Data Search by Time/Date, Event, Vehicle Speed, G-Force level
MP4 Conversion Tool. Data Remains Watermarked.
Google Maps Integration for Route Tracking
Google Earth Export Tool for Advanced Route Tracking and Archiving
Privacy masking feature for blurring out faces or license plate numbers
31 day Vehicle Tracking History, showing vehicle location, speed and driving style regardless if event video was recorded or not
Save/Print Event Reports
OTA Software & Firmware Updates

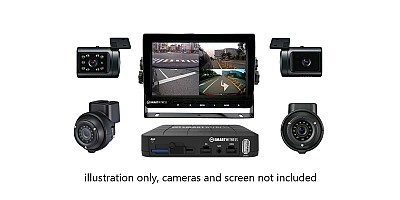

With optional LCD monitor connected, view all four cameras at once or playback recorded videos in the vehicle
