DESCRIPTION

Backup Camera to Factory Screen

Looking to add a backup camera to your Audi factory screen?

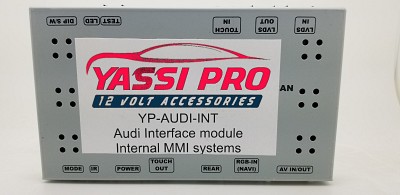

With our Audi video interface YP-AUDI-INT you can now use your factory screen to see the back of your vehicle when reversing, or front of your vehicle when you need.

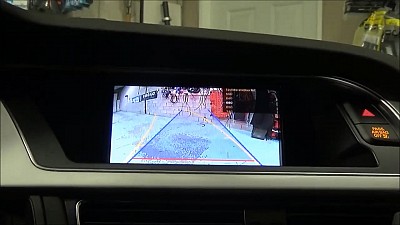

Make every parking easy with the dynamic parking guide lines that will show you which way your wheels are pointing.

Have the system installed with our high resolution YP-CAM-09 Audi factory handle direct replacment , or low resolution Audi factory handle direct replacment camera for the best look and quality picture.

For vehicle compatibility list please contact our sales department

Compatibility

Audi model	Model years	Multimedia system
A4	2008~	without MMI. concert system
A5
Q5
S4
S5

Specifications

1. Input Spec. (MULTI VIDEO INTERFACE)

- 1 x Analog R,G,B,sync

- 1 x CVBS(REAR CAMERA) Input. (Rear camera source)

- 2 x A/V (NTST & PAL) Input.

- 1 x LCD Input (Car system Input)

2. Output Spec.

- 2 X CVBS OUTPUT (Video Out for installing Headrest monitor)

- 1 x Audio OUTPUT

- 1 X LCD OUTPUT(LCD Operation)

3. Electric Power Spec.

- Input Power : 10VDC ~ 16VDC

- Consumption Power : 12WATT, Max

4. Switching AV Source

    - Possible to skip AV source while switching Mode (AV source) by DIP S/W
    - By remote control
    - By toggle switch (Refer to the DIP S/W page)

- By Touch (Optional)

YP-AUDI-INT camera Add-On module for Audi without MMI | Dynamic Parking Guide Line | Multiple video inputs
