Brand: Yassi Pro
Compatible with: Mercedes Benz
Notes: In-store only

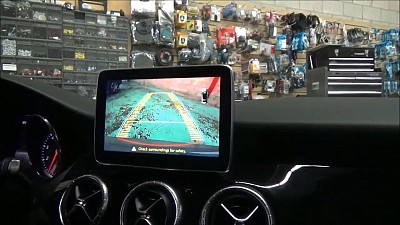

YP-MB-204 Mercedes NTG 4.5 4.7 backup camera and video interface
IMPORTANT: Before ordering please send a picture of your dash and radio area to confirm compatibility or call our sale team
1. Car Compatibility
New A-Class, B-Class, C-Class, E-Class, GLK-Class, ML-Class,
CLA-Class(Round connector Type) | NTG 4.5 / 4.7

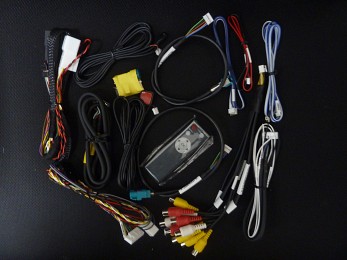

2. Components

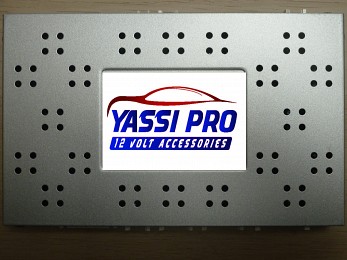

Interface* 1EA, Sub-board*1EA
3. MULTIMEDIA INTERFACE input specification
3 * A/V input (video external input)
1 * CVBS(Rear Camera) input
2 * Analog RGB input
1 * LCD input (Car system input)
4. MULTIMEDIA INTERFACE output specification
1 * LCD output
5. Power specification
Input power : 8VDC ~ 18VDC
Consumed power : 5WATT
6. Switch input mode
- External display skip function : through DIP switch, can control each video input
- Through remote control, can change input mode
- Through CAN or rear lamp cable, rear camera can be detected
Mini Bee type mount HD camera
Current Consumption: MAX: 50mA
Sensor: CMD-III.
Resolution: 420 TV Line
Minimum illumination: 0.5 Lux
View angle: 170 degree
Effective Pixies: 648*488
TV System: NTSC
Video colour: Full colour
Waterproof: IP67-IP68
Working Voltage: DC 9-16 V
Operating Temperature: -30 Co to 70 Co
Parking guard line: On/Off switchable
Image: Mirror/Non mirror switchble
16 ft Universal harnesses
Mini Lip mount plug-in style
Current Consumption: MAX: 50mA
Sensor: CMD-III. High performance Digital Supper Clarity Image Sensor
Resolution: 420 TV Line
Minimum illumination: 0.5 Lux
View angle: 170 degree
Effective Pixies: 648*488
TV System: NTSC
Video colour: Full colour
Waterproof: IP67-IP68
Working Voltage: DC 9-16 V
Operating Temperature: -30 Co to 70 Co
Parking guard line: On/Off switchable
Image: Mirror/Non mirror switchble
16 ft Universal harnesses
