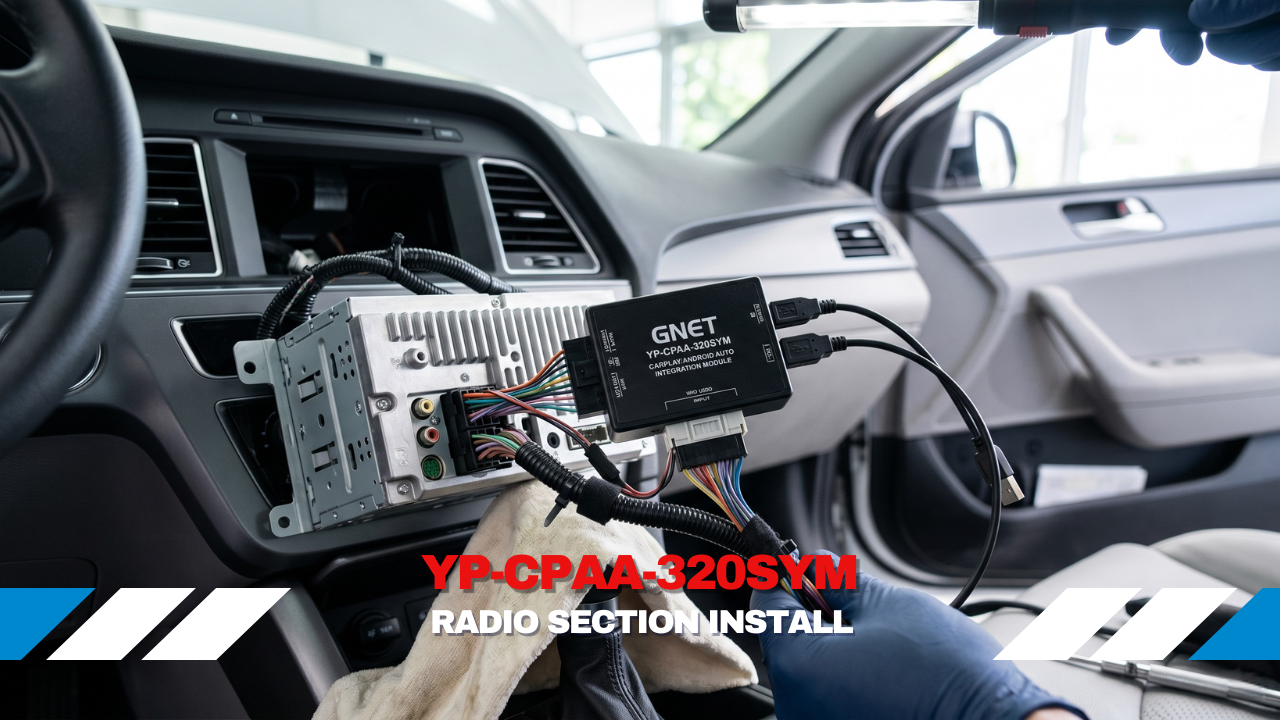

Upgrading the infotainment system in your luxury vehicle doesn't mean you have to replace your entire factory dashboard. A detailed walkthrough by Car Systems Installation demonstrates how to seamlessly assemble the internal motherboard to integrate Apple CarPlay using the YP-CPAA-320SYM interface. This internal radio modification proves that you can bring modern smartphone connectivity to your Audi without altering its original factory appearance.
Core Highlights of This Custom Fitting:
Careful Screen and Component Disassembly: The installation begins by delicately removing the factory screen using the surrounding tabs. The technicians completely remove the original internal metal shield, which is intentionally left out to accommodate the new smart interface without causing any fitment issues or short circuits.
Precise Flex Cable Integration: A critical step involves removing the original flex cable and seating the new one. The installer emphasizes meticulous insertion—ensuring the blue tabs properly face the top of the small motherboard—and securely fastening the black locking mechanism to guarantee flawless data transfer.
Secure Motherboard Mounting: Instead of just cramming components inside, the new specialized motherboard is carefully slid back into the radio's internal slot. It is mounted securely using two original screws to act as the holder, ensuring a solid, rattle-free installation inside the radio unit itself.
Accurate Wiring Orientation: When connecting the main system cable to the newly installed motherboard, the installers pay strict attention to polarity and alignment. By ensuring the ground wire sits perfectly on the right side, they guarantee a reliable and safe connection to the external CarPlay module.
