GPS Antenna Included. WiFi Dongle Included. 128GB Micro SD Card included
*Requires SSD adapter for the 1TB drive

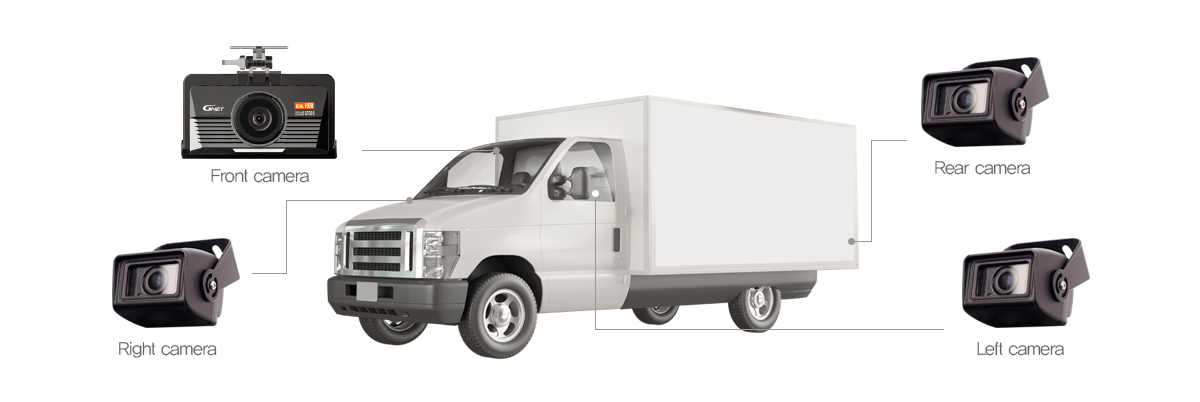

4Channels Full HD, 4 consisting of front, right, left, rear and inside. 4.5inch LCD

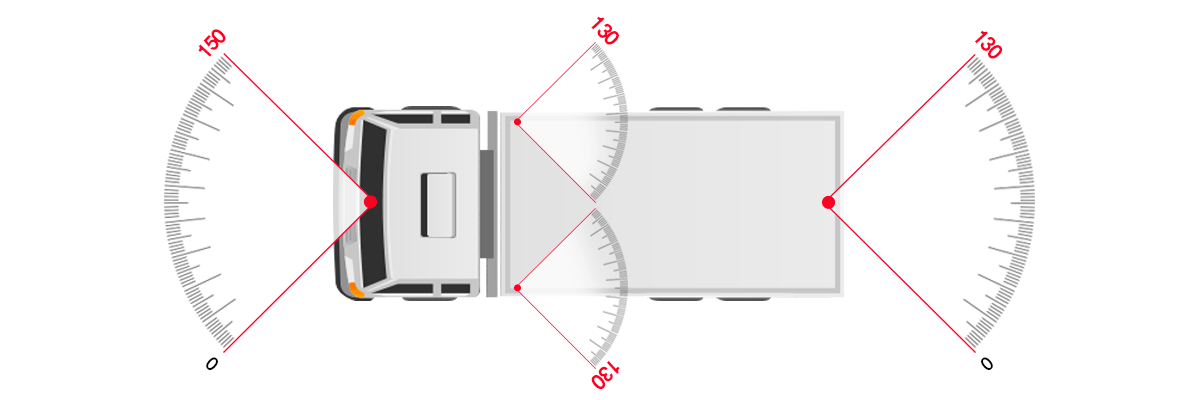

Front camera angel 150 degrees Side camera and rear camera angle 130 degrees
The GNET system has an optimal shooting angle of 150 degrees for the front camera and 130-degree angle for the sides and rear without distortion problem
With 130 degree side angle for the side cameras and rear any side or rear impact is recorded in more true image instead of stretched without distortion

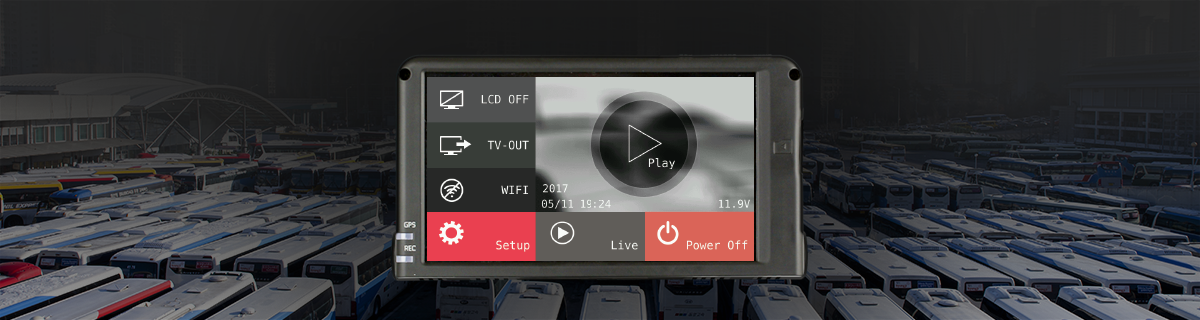

User Friendly. Watch real time video. Play recorcded vidoes,

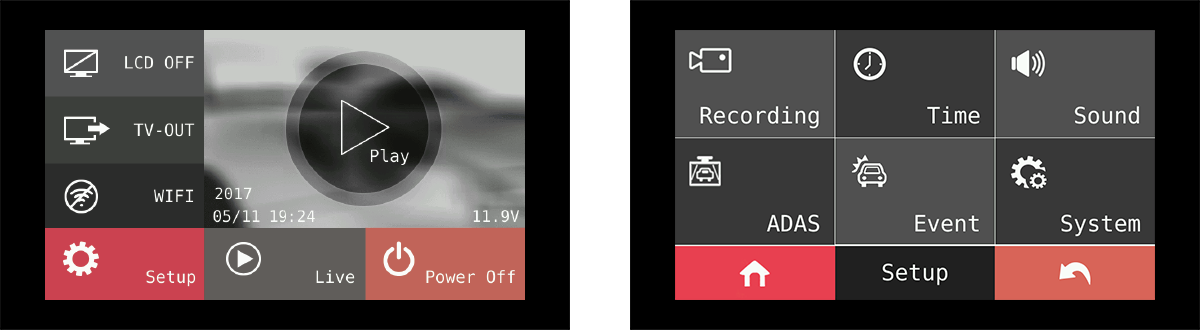

Change the dash cam setting quickly and easy with no PC connection or smartphone

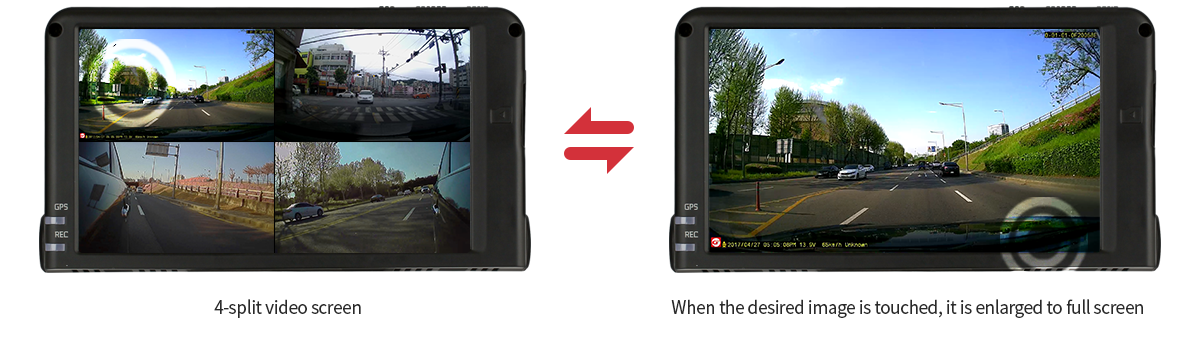

View the front, left, and rear images at a glance with a 4-split screen

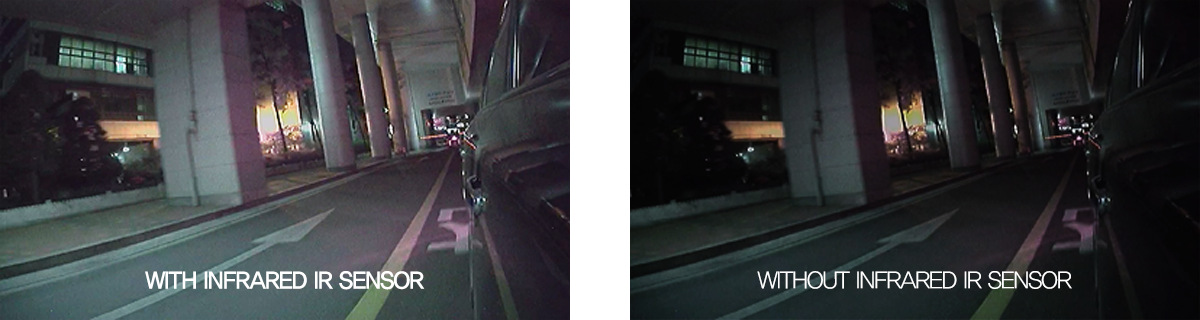

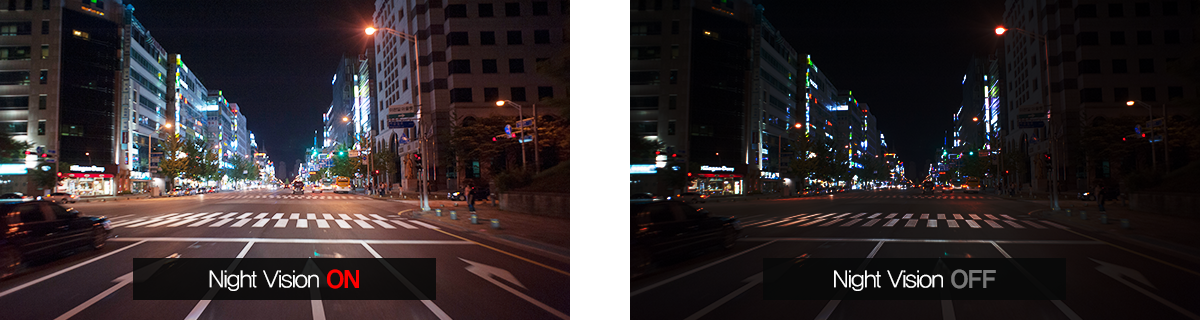

Enhanced shooting function in dark environments or at night
ADAS is a safe driving assistance system for the driver's safe driving environment when shooting at night or in a dark environment with lacking light.
* There may be differences depending on the usage environment

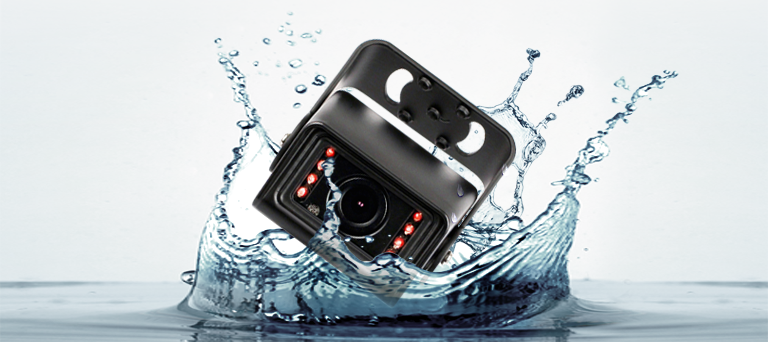

The IP69K IR camera provides clear picture quality even in the dark at night
*Requires SSD Adapter not included

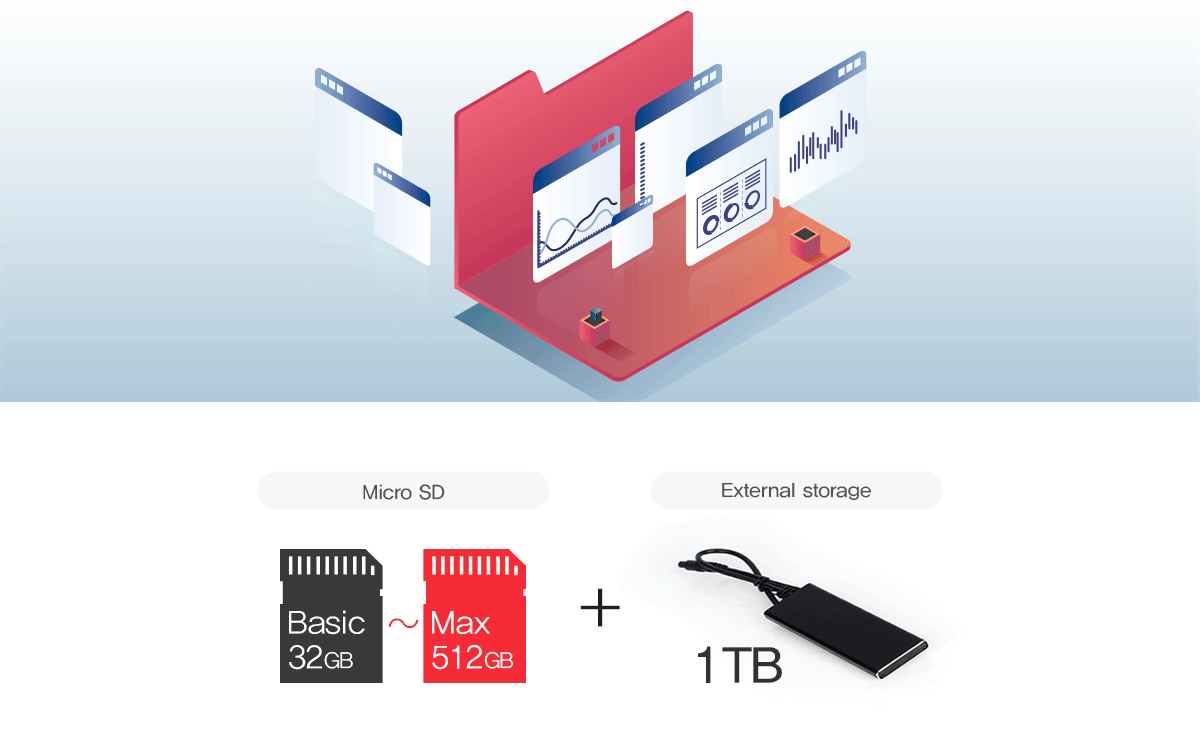

Micro SD memory included is 128GB and supports up to 512GB
※We are highly recommend to use Genuine Memory card from Gnetsystem.
External storage supports up to 1TB SSD
Compatible SSD cards
Western Digital WD Blue 3D M.2 2280(2TB) SATA
Samsung Electronics 850 EVO M.2 (2280): 120GB ~1TB
Samsung Electronics 860 EVO M.2 2280 (1TB)
* For other models, please contact customer service
It is an intelligent Safe Guard function that automatically shuts down recording when the voltage falls below
a specified voltage and cuts off the power to protect the battery of the vehicle.
GNET G-ON LBP FUNCTION AUTO SAFE GUARD ( LBP ON / OFF )
Settings can be made directly from the dedicated GNET PC VIEWER, and the vehicle voltage can be checked when checking
the recorded video of the vehicle. You can easily set up wireless via GNET APP at the time of smartphone interlocking
|Division||Configurable Voltage (V)|
After accessing the firmware configuration by APP, the latest
firmware can be automatically searched for and downloaded.

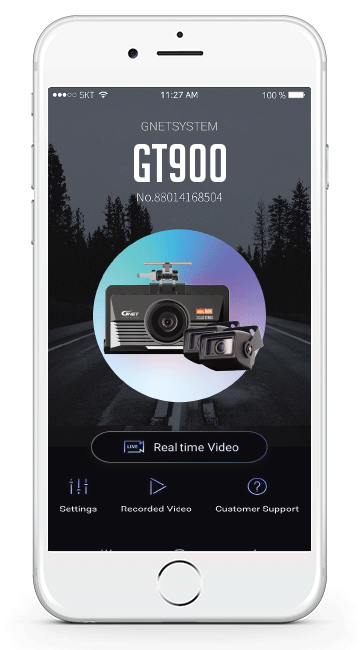

You can easily set up device registration, real-time video setup, recorded
video list, and customer support through the mail screen.
Using the Smartphone APP to play video as well as configure various settings
ADAS is a safe driving assistance system for the driver’s safe driving environment
FVSA – Front Vehicle Start Alarm
When the distance to the vehicle in front of your
car stops by more than 2 meters, the departure
icon of the vehicle in front of you with beep sound
appears on the LCD screen.
FCWS – Forward Collision Warning System
When the distance between the vehicle in
front is short and the vehicle speed is high and
in front is rapidly reduced within a short time.
Displays a Collision Warning icon with a notification
LDWS – Lane Departure Warning System
If you leave the lane while driving, It is indicated
by a yellow or red line with a warning sound.
only, notification works only when the speed
is over the set speed.
* Lane detection points, forward departures, and collision warning icons are only visible if the current status of the LCD is live.
ADAS settings can be set only after GPS connection
|MEMORY CARD AUTOMATIC|
RECOVERY AND SELF-FORMAT
|BUILT-IN VOICE GUIDE|
|G-Net has been passed the high-temperature test.|
Differs from other brand dash cameras
which shut down the power becasue they can
not withstand at high temperatures.
|Unlike other companies’ black boxes, which|
require users to format periodically, JDR’s
own file system with excellent reliability is
applied for convenient use without regular format.
|It has a friendly voice guide, high-quality|
voice recording, and a high-performance
microphone, which makes it easier to check the
operation and recording conditions while driving.
|SECURITY LED FUNCTION||EXTERNAL GPS||VARIOUS RECORDING MODES|
|It is equipped with intelligent security|
LED function to prevent crimes that can parking
terrorism and theft. With clear view, it detects
movement in parking mode and starts
|You can check at a glance the data image|
received from the GPS while driving.
* External GPS is optional (sold separately)
|Parking Surveillance / Motion Detection|
The event recording is automatically recorded
for a certain period of time when the impact is
detected on the vehicle in various
Easily play and check the recorded video with a viewer program for PC
It provides various functions Zoom, partial zoom function, Lane drawing function, set recording frame.
Backup features include AVI file generation, tampering prevention, thumbnails, and interval repetitive searches.
※The image of components may be different from the real components.
※Specifications and Components may be change without notice for improving quality.
Full HD CMOS Sensor (Front – FHD, Left – HD, Right – HD, Rear – HD)
Front Camera : 1080P(1920x1080P) / Right, Left side camera : 720P(1280x720P)
Rear Camera : 720P(1280x720P)
Frame per second
Smartphone registration standby mode
Event recording by impact
Voice Support (Speaker)
An audible alarm and voice guidance for operational status.
Location & speed recording, based on Google map (Optional)
Front 150° / Side 130° /Rear 130°
VISTA / 7 / 8 / 10, 32Bit / 64Bit, Over OSX 10.7 64Bit Google map is available from Windows 7 due to its policy and over Internet Explorer 0 is needed. Required over CPU i5 3.0GHz, memory 4GB Playback may not be smooth according to the PC specification when playing more than 3 channels simultaneously.
Micro SD 16MB~1TB, External 2M Method SSD storage support (maimxum 1TB) Specification:M.2 SATA3, Interface key:B Key, B+M Compatible,
Max. Storage capacity : 2280 supporte
DC 12V - 24V
Acceptable current value
-20℃ ~ 70℃ (Storage : -20℃ ~ 80℃)
4.5inch 854x480 LCD pannel (Touch type)
